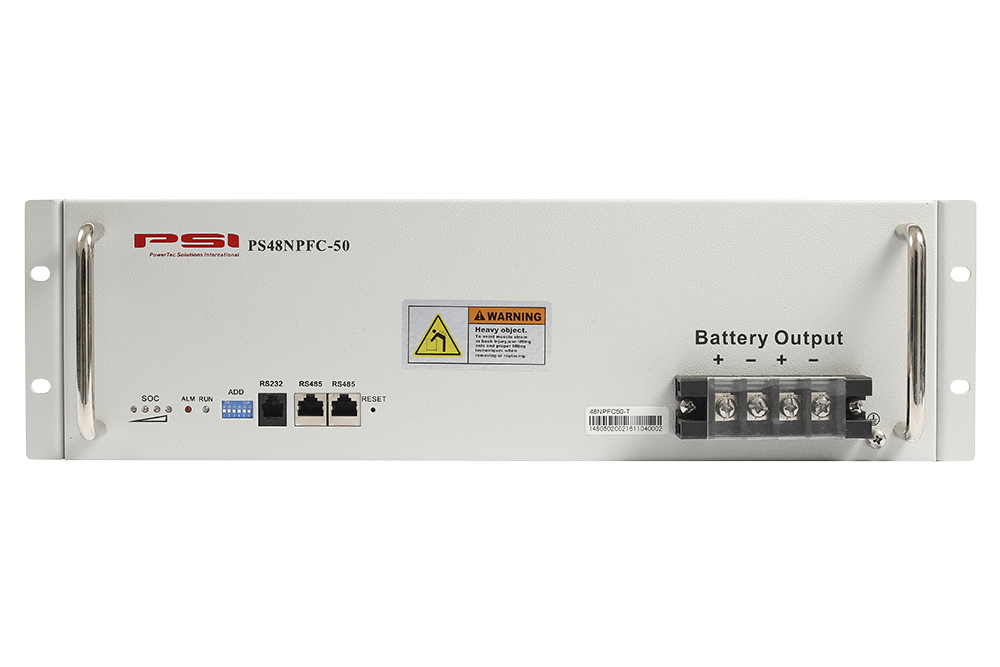

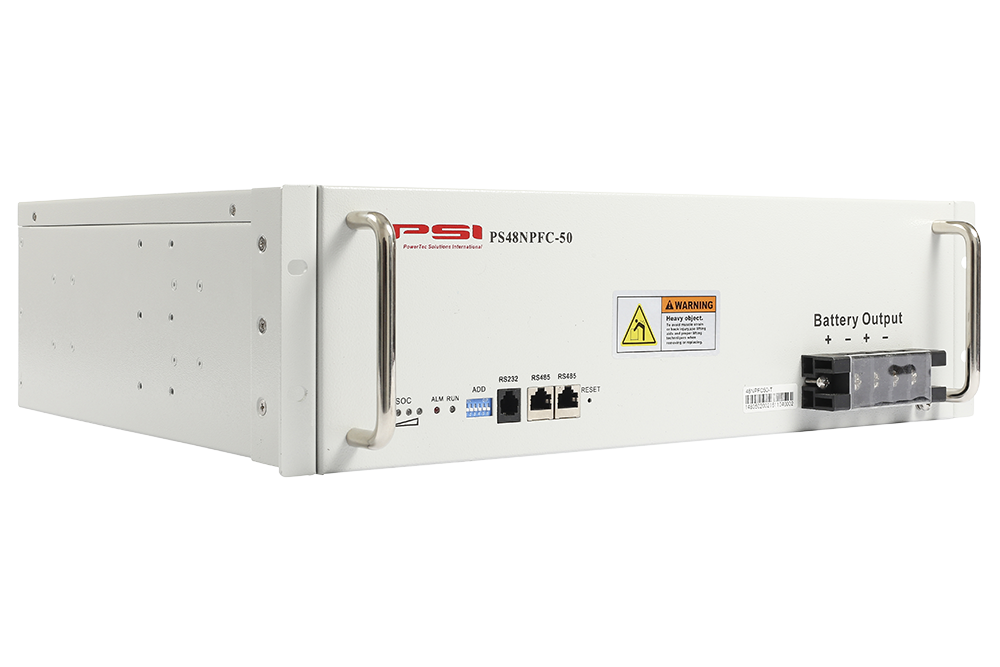

PSI 48V Rackmount Battery (50AH)

#PS48NPFC50

The 48V Rackmount Battery Series is compatible with all standard Telecom Rectifiers or for use with standard 48V Solar and Charge Controller deployments. With a 40-70% smaller footprint, 40-70% less weight than legacy Sealed Lead Acid, and the highest level of operational efficiency with intelligent Battery Management System, the 48V Rackmount Battery Series offers the future of Telecom Standby power…

Description

The 48V Rackmount Battery System delivers the most efficient, intelligent, and cleanest long-life battery backup solution to 48Vdc Telecommunications Systems. Developed specifically for Telecom equipment as a drop-in replacement to legacy 48Vdc Sealed Lead Acid Battery strings, its ease of installation, integrated Battery Management System (BMS) and maintenance free design offers the Industry’s future for Telecom Standby Power. The 48V Rackmount Battery Series is offered in 20AH, 50AH and 100AH models and is compatible with all standard Telecom Rectifiers or for use with standard 48V Solar and Charge Controller deployments. With a 40-70% smaller footprint, 40-70% less weight than legacy Sealed Lead Acid, and the highest level of operational efficiency with intelligent Battery Management System, the 48V Rackmount Battery Series offers the future of Telecom Standby power.

APPLICATIONS

xDSL/FTTH/FTTX Standby Power

-48V Standby Power

Sealed Lead Acid Replacement

Wireless Standby Power

Portable Power

Multi-Dwelling Unit (MDU)

Features

20 Year Battery (Design Life)

40%-70% Smaller Footprint than Sealed Lead Acid (SLA) Batteries

40%-70% Less Weight than Sealed Lead Acid (SLA) Batteries

Comprehensive Communication via Ethernet - Google Network Mapping, SNMP Alarming, Real-time Monitoring

Parallel Operation for Ease of Scalability

Installed by Anyone in Less than 5 Minutes

Stationary or Portable Power

State of Charge and State of Health Indicator

Redundant Safety

More Usable Capacity than Sealed Lead Acid (SLA)

Built-in Automatic Protection - Over-Charge/Over-Discharge/Over-Temperature Protection

Internal Cell Balancing

Communication of Monitored Data via Battery Management System (BMS)

Technical Specifications
Battery Specification

Rated Voltage: 48Vdc

Rated Capacity: 50Ah

Discharge Current (Max): 50Ah

Discharge Voltage Cutoff: 40.5V

Charge Current (Max): 50Ah

Charge Voltage: 52-55V

Design Life: 20 Years

Physical

Dimensions (H x W x D): 132.5mm x 442.5m x 390mm (5.2" x 17.42" x 15.35")

Rack Units: 3RU

Weight: 32kg (70.5 lbs)

Terminal Size: M6 (Screw Size)

LCD Screen: Optional

Breaker: Optional

Parallel Capacity (Max): 16 units

Status Indicators

State of Charge: SOC

Alarm: ALM

Run: RUN

Communications Port

Serial: RS232/RS485

Ethernet: ETH

Environmental

Operating Temperature: -20°C to +60°C
